ARCHITECTURAL VISION SYSTEMS

COR Vision

ULTRA-SLIM, VIRTUALLY FRAMELESS SLIDING DOORS WITH 20MM SIGHT LINES
PAS 24PAS 24 accredited locking system available

Features

  • VIRTUALLY UNLIMITED RANGE OF FINISHES AND RAL, SYNTHA PULVIN OR BS COLOUR CHOICES
  • OUR VISION LINE CAN BE ENHANCED WITH A PAS 24 ACCREDITED LOCKING SYSTEM
  • MULTI-POINT LOCKING SYSTEM FOR ENHANCED SECURITY
  • LOW U-VALUES IMPROVE YOUR PROJECT’S ENERGY EFFICIENCY
  • AVAILABLE IN LARGE DIMENSIONS TO SUIT ANY DESIGN CHOICE
  • MADE IN OUR OWN FACTORY IN KENT, FROM CORTIZO ALUMINIUM SYSTEMS
  • EXCELLENT WIND, WATER AND AIR RESISTANCE RATING
  • CONFIGURATIONS INCLUDE 90° CORNERS, POCKET SOLUTIONS, AND SLIDING DOORS WITH UP TO 4 TRACKS.

Compare our sliding door systems ↗

01

Why COR Vision

Cor-Vision doors are Ultra-slim & virtually frameless sliding doors. Incorporating highly efficient double glazing and thermally broken aluminium profiles with PVCU insets, the door system provides the smallest of vertical sight lines at 20mm and exceptional thermal efficiency. Allowing for as much daylight into the home as possible, a key concept in all modern architecture.
Multi-point locking, with keeps set within vertical profiles designed to be concealed within the walls, provides clean lines and high security. The base and head of the doors have been designed to be incorporated into the building fabric, giving a flush threshold to the base and a seamless look to the head.
With multiple configurations available, your imagination is the limit. If we haven’t done it, we will try to find a way to make your dreams possible.
Request COR Vision drawings
02

Optional features

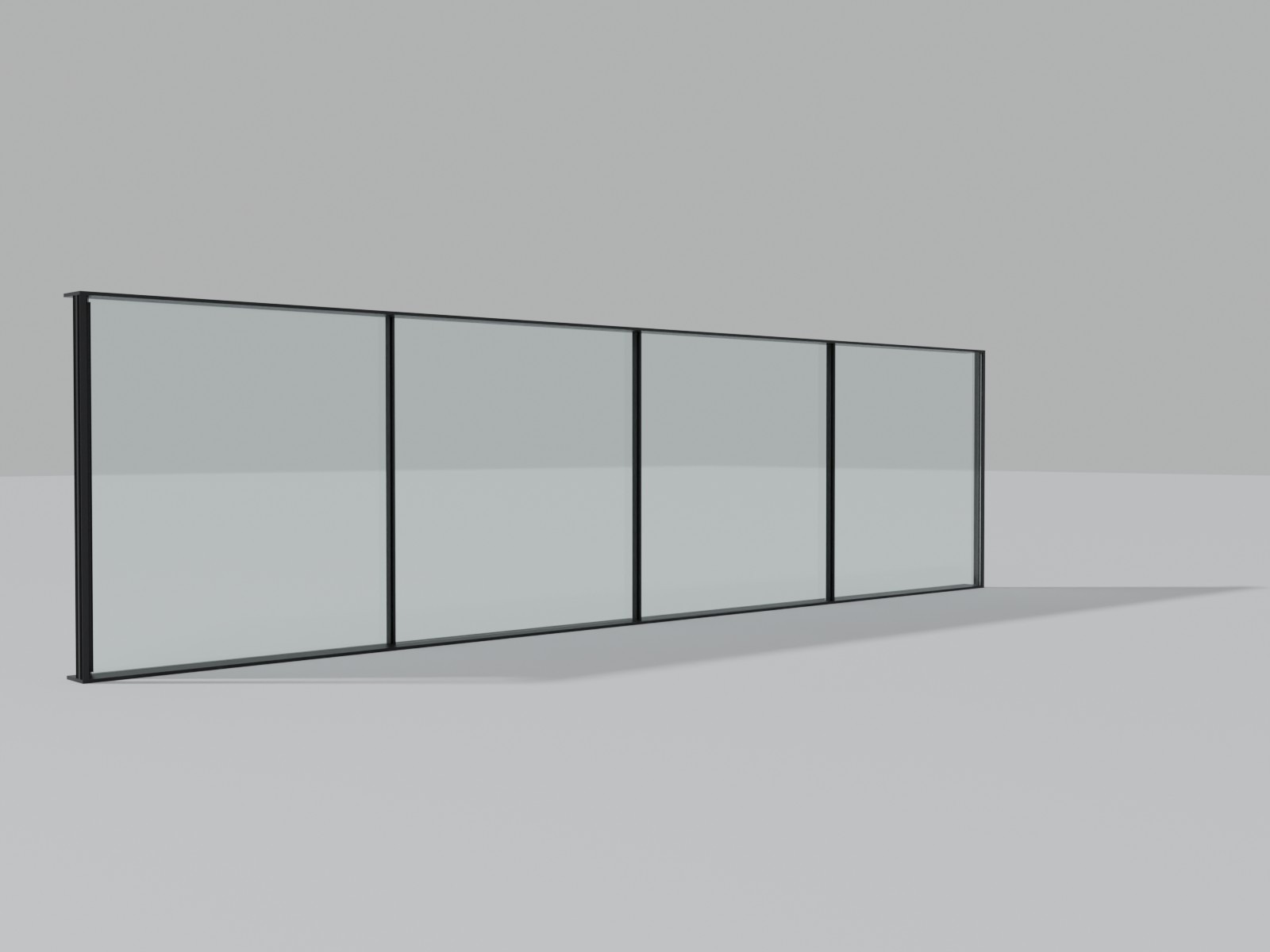

2/3/4 Tracks

The system allows for up to 4 tracks opening up of a multitude of possibilities and combinations

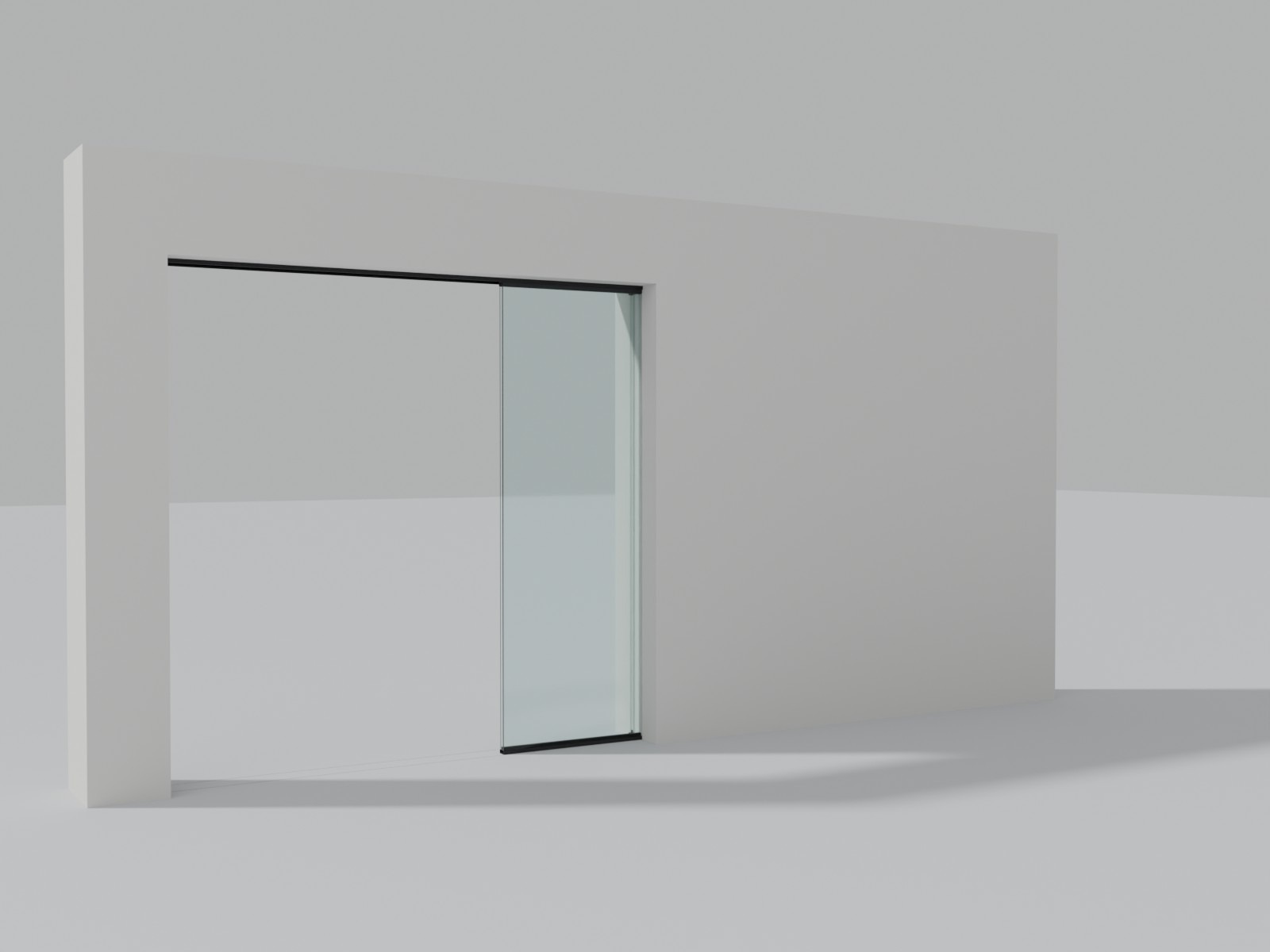

Pocket

By utilizing a pocket system that enables the panels to slide entirely into a false wall, a sense of a seamless and unobstructed opening can be achieved

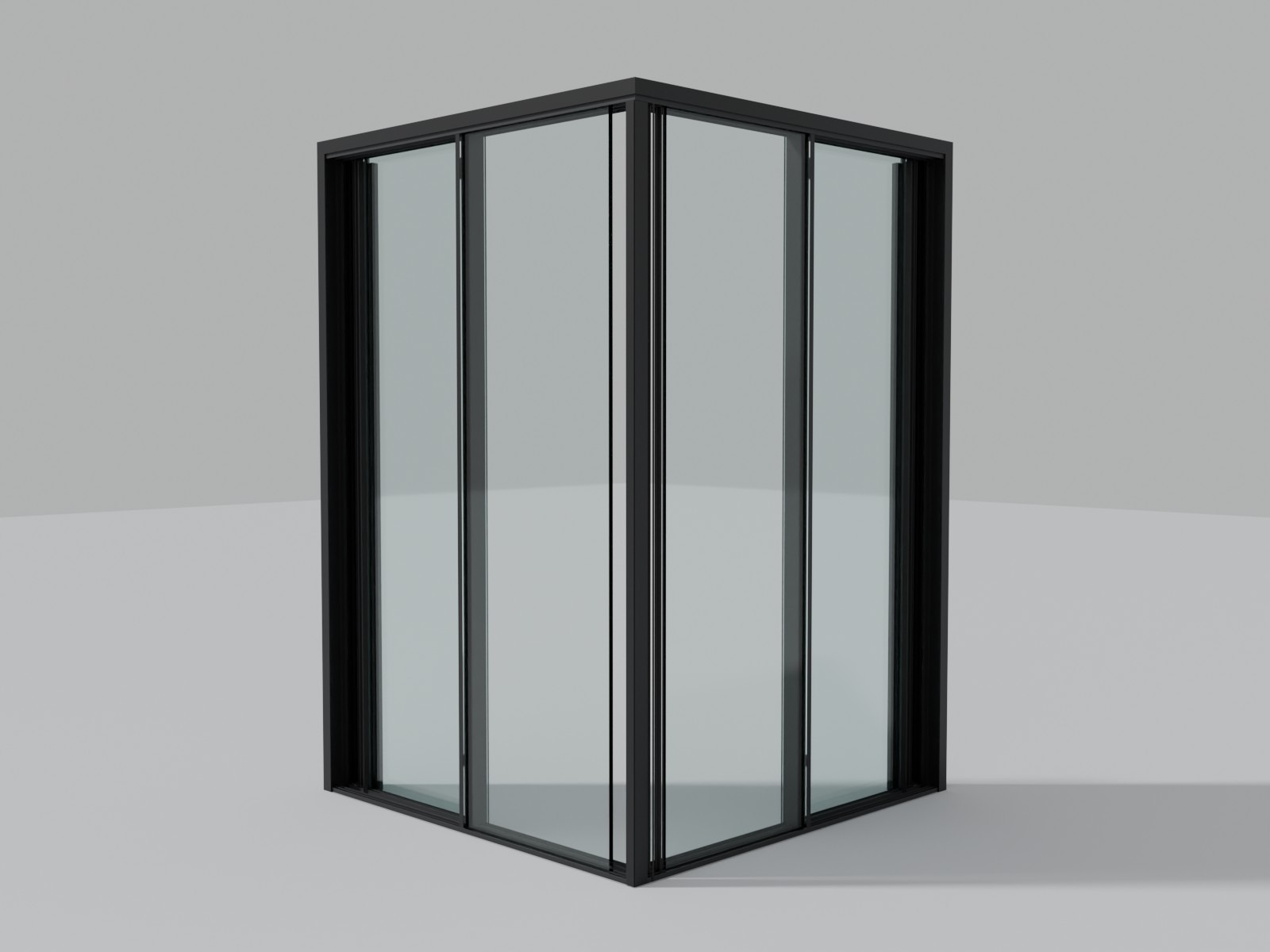

90° Degree

Moving corner posts allows you to open a corner of your property. These are available in various combinations 2/3 tracks

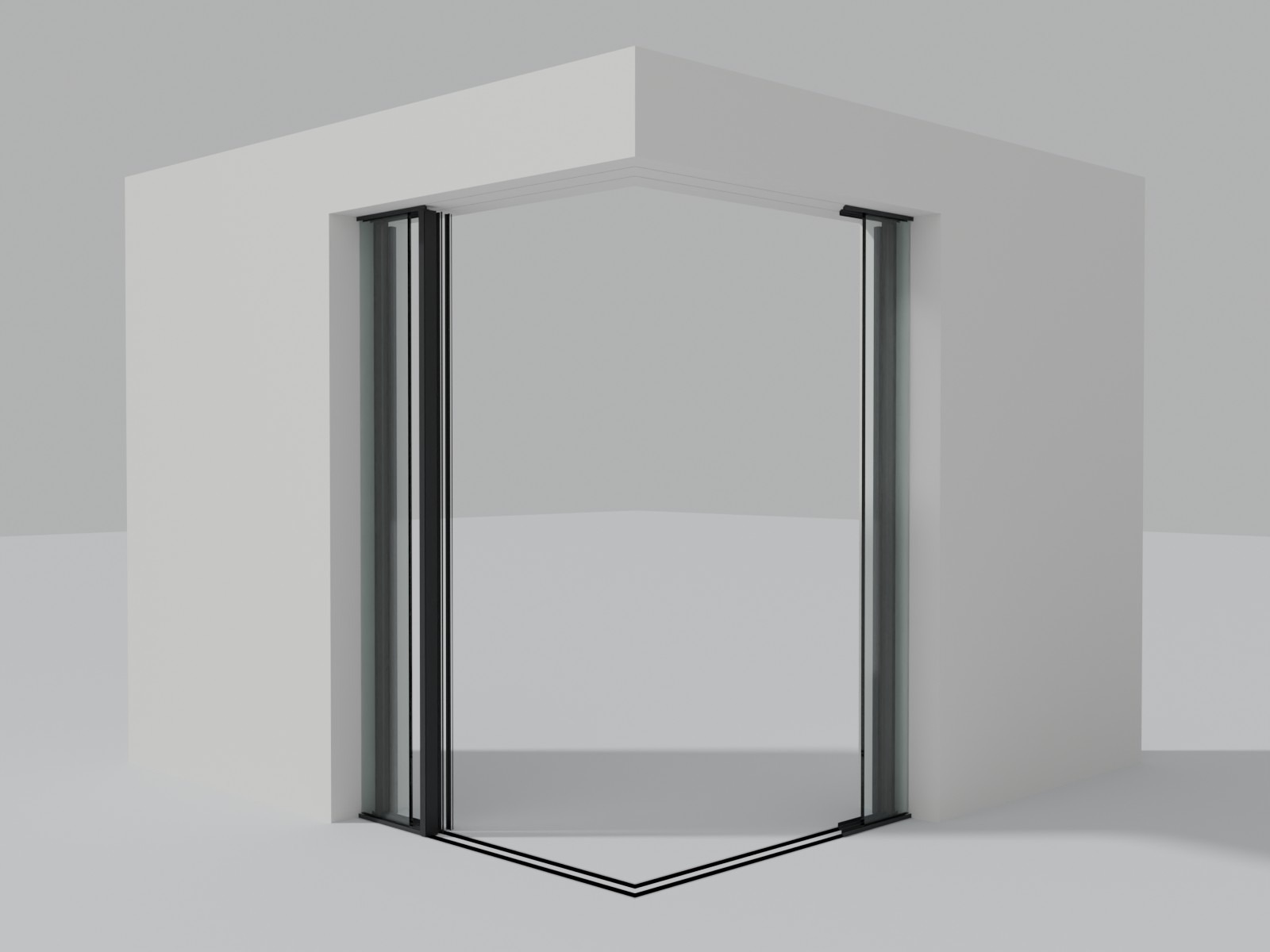

Pocket Corner

Pockets and corners can be combined, so a corner slides away into pockets in both walls and the whole corner opens.

03 · THE DETAILS

Explore the COR Vision options in 3D

Two track

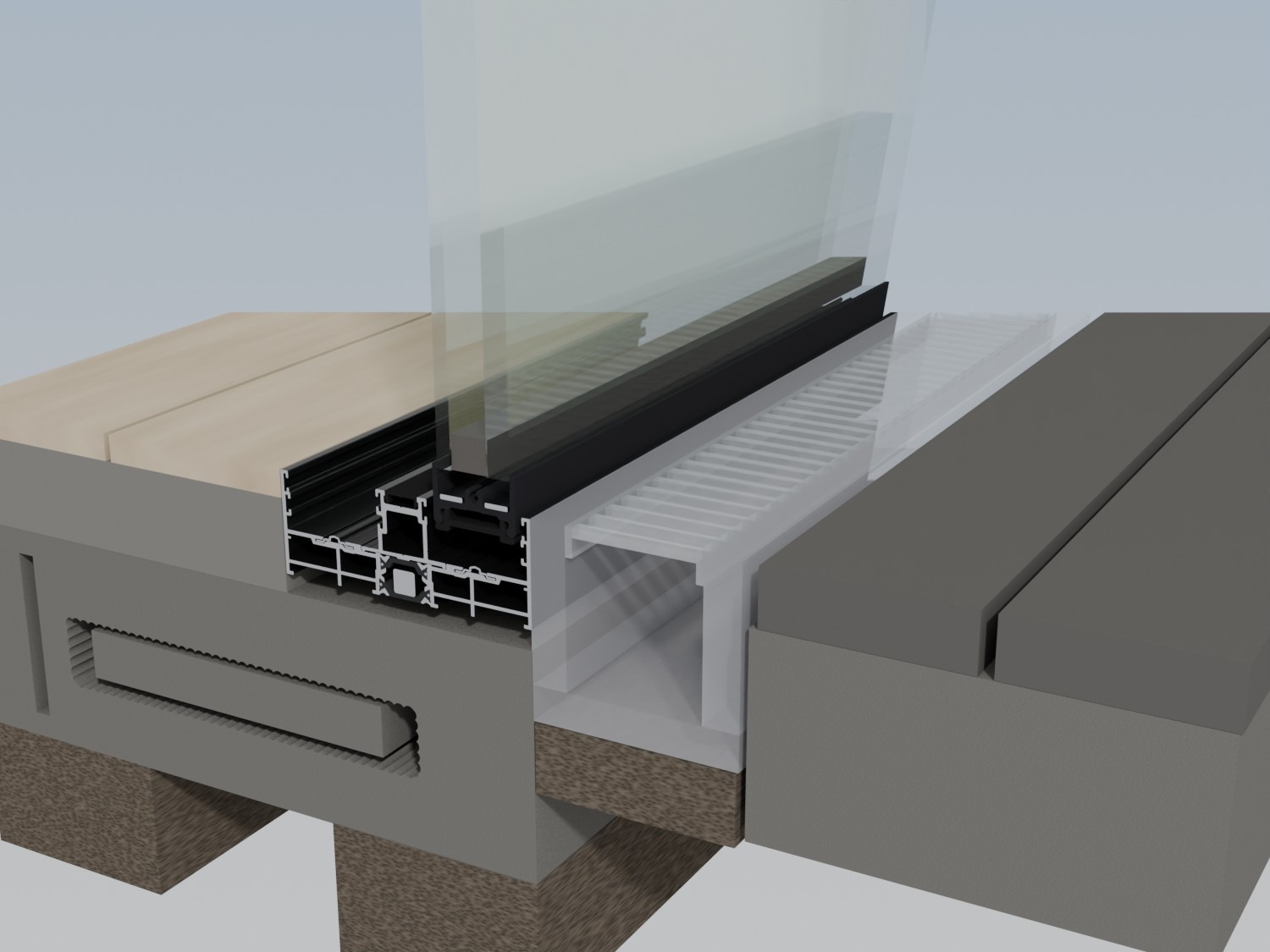

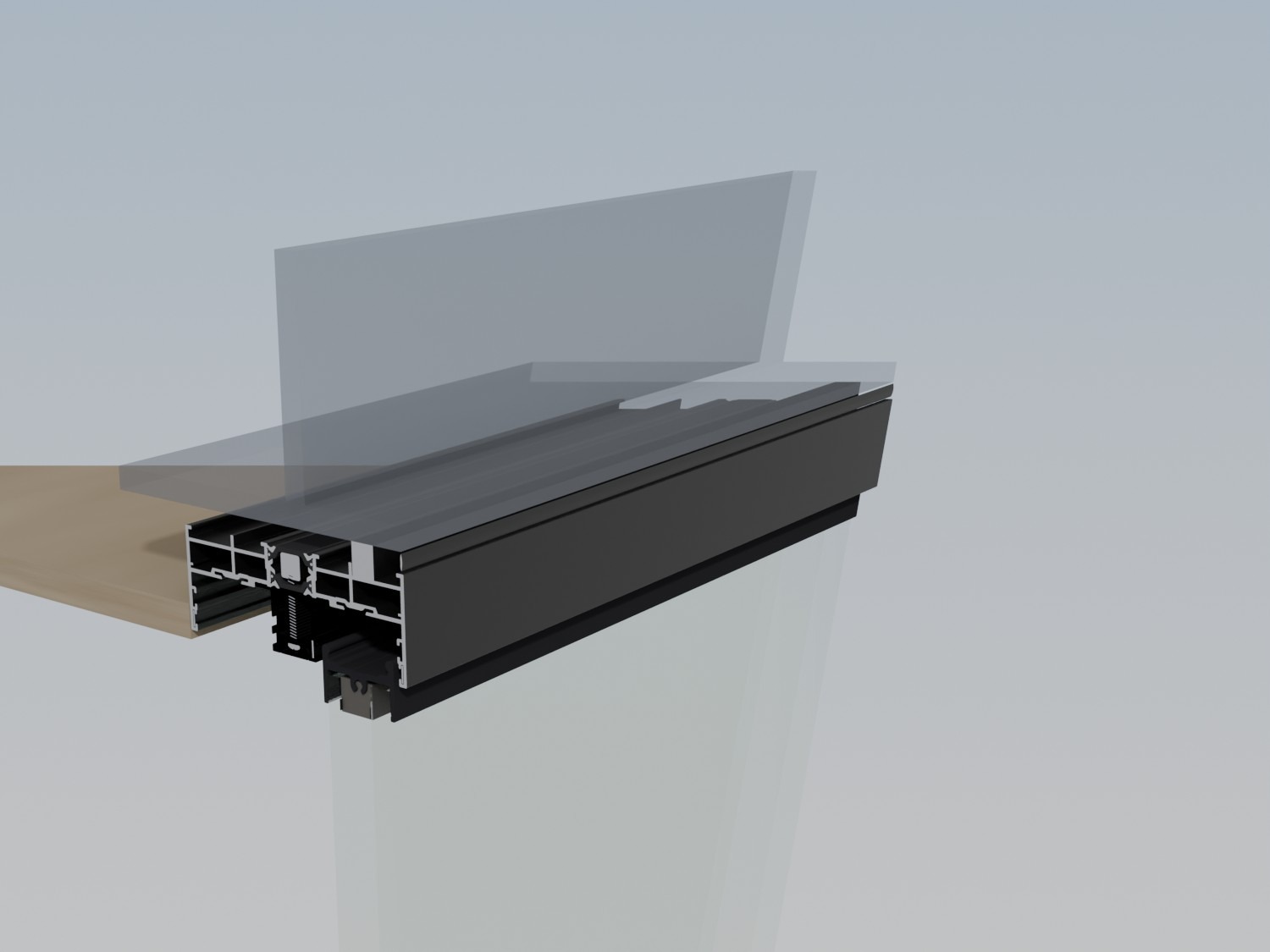

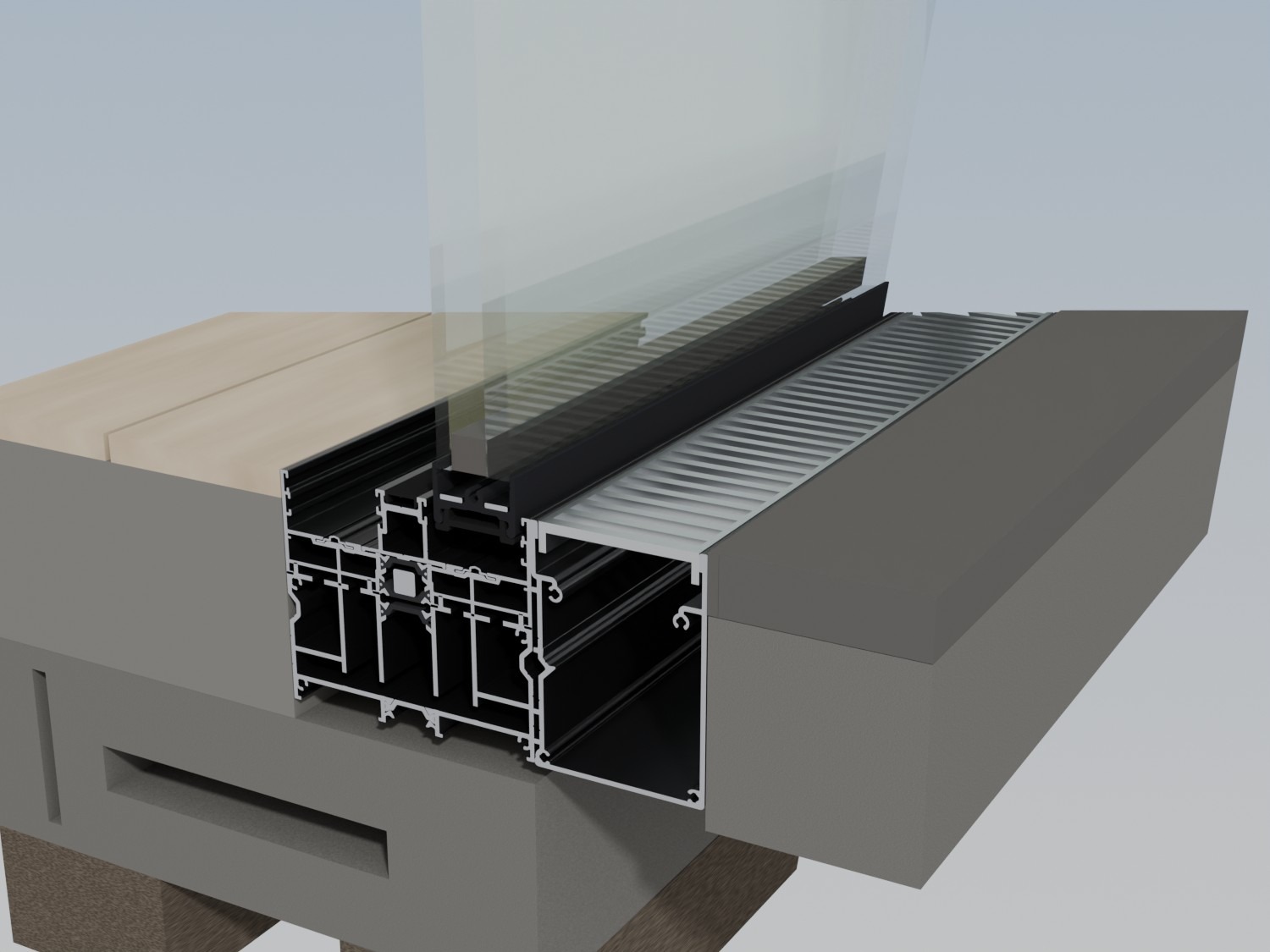

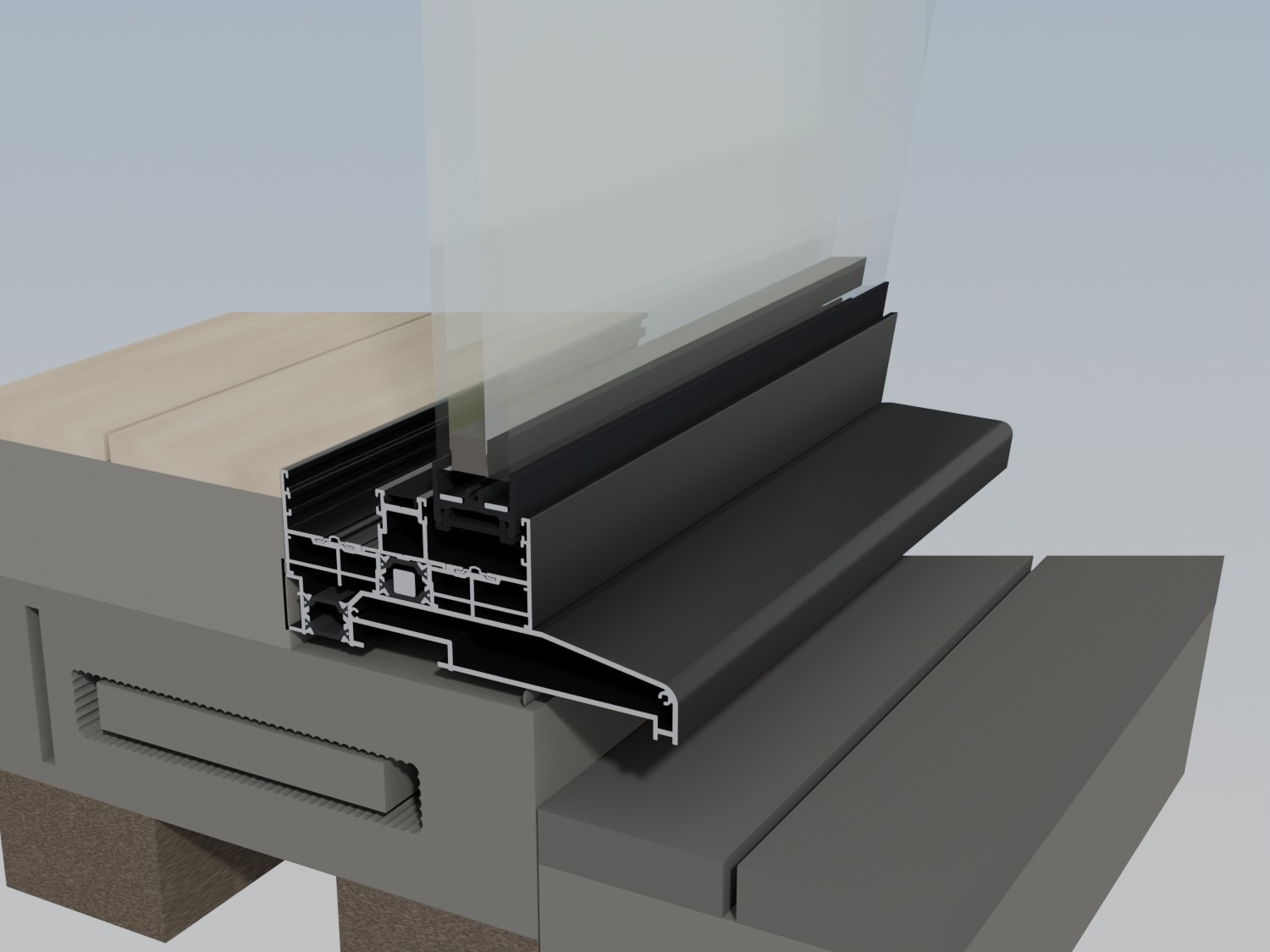

Two track flush baseTwo track flush baseOpen 360 view ↗Two track base · 180 mm cillTwo track base · 180 mm cillOpen 360 view ↗Two track base · Drainage gullyTwo track base · Drainage gullyOpen 360 view ↗Two track head · PlainTwo track head · PlainOpen 360 view ↗Head and trickle ventHead and trickle ventOpen 360 view ↗

Three track

Three track base · Flush thresholdThree track base · Flush thresholdOpen 360 view ↗Three track base · 250 mm cillThree track base · 250 mm cillOpen 360 view ↗Three track base · Drainage gullyThree track base · Drainage gullyOpen 360 view ↗Three track head · PlainThree track head · PlainOpen 360 view ↗Three track head · Trickle ventThree track head · Trickle ventOpen 360 view ↗

Vertical details

Lock post from aboveLock post from aboveOpen 360 view ↗Mullion interlock from aboveMullion interlock from aboveOpen 360 view ↗Skinny mullionSkinny mullionOpen 360 view ↗Small mullionSmall mullionOpen 360 view ↗Medium mullionMedium mullionOpen 360 view ↗Large mullionLarge mullionOpen 360 view ↗Jumbo mullionJumbo mullionOpen 360 view ↗

05 · CONCEALED VENTILATION

Vision hidden trickle vent

Integrated into the door head, with a discreet manual slide control. Explore the whole assembly, rotate in any direction and switch to the close-up end section. Each vent provides a 2,000 mm² opening, with up to three vents per door.

Vision hidden trickle vent mounted in the continuous door-head profile, shown in Traffic white
Open 3D viewer in a full window ↗Download the A4 product sheet ↓

Use Open / Closed to move the slide, and Whole assembly / Quote cutaway to change the view. RAL 9016 Traffic white is shown by default. Each vent provides a 2,000 mm² opening, with up to three vents per door. Vent quantity and positions should suit the building's ventilation design.
