Architectural Vision Systems

VISION EVO

Future-Proof Your Build. Designed to exceed the incoming Future Homes Standard, the Vision Evo’s U-value ensures your project is compliant and future-ready, protecting your investment against tightening regulations.



    • Brand-new design incorporating features to deal with more challenging climates.
    • Glass, floor-to-ceiling, with fully embedded frames.
    • No exposed frames on the opening sash.
    • Three times better weather sealing than market-leading slimline sliding doors.
    • Triple-glazed to meet the most stringent building regulation requirements.
    • Textured paint finish as standard.

THE DATA

KEY FEATURES

TECHNICAL DATA

Cor Vision Swatches
VIRTUALLY UNLIMITED RANGE OF FINISHES AND RAL, SYNTHA PULVIN OR BS COLOUR CHOICES
Cor Vision Swatches

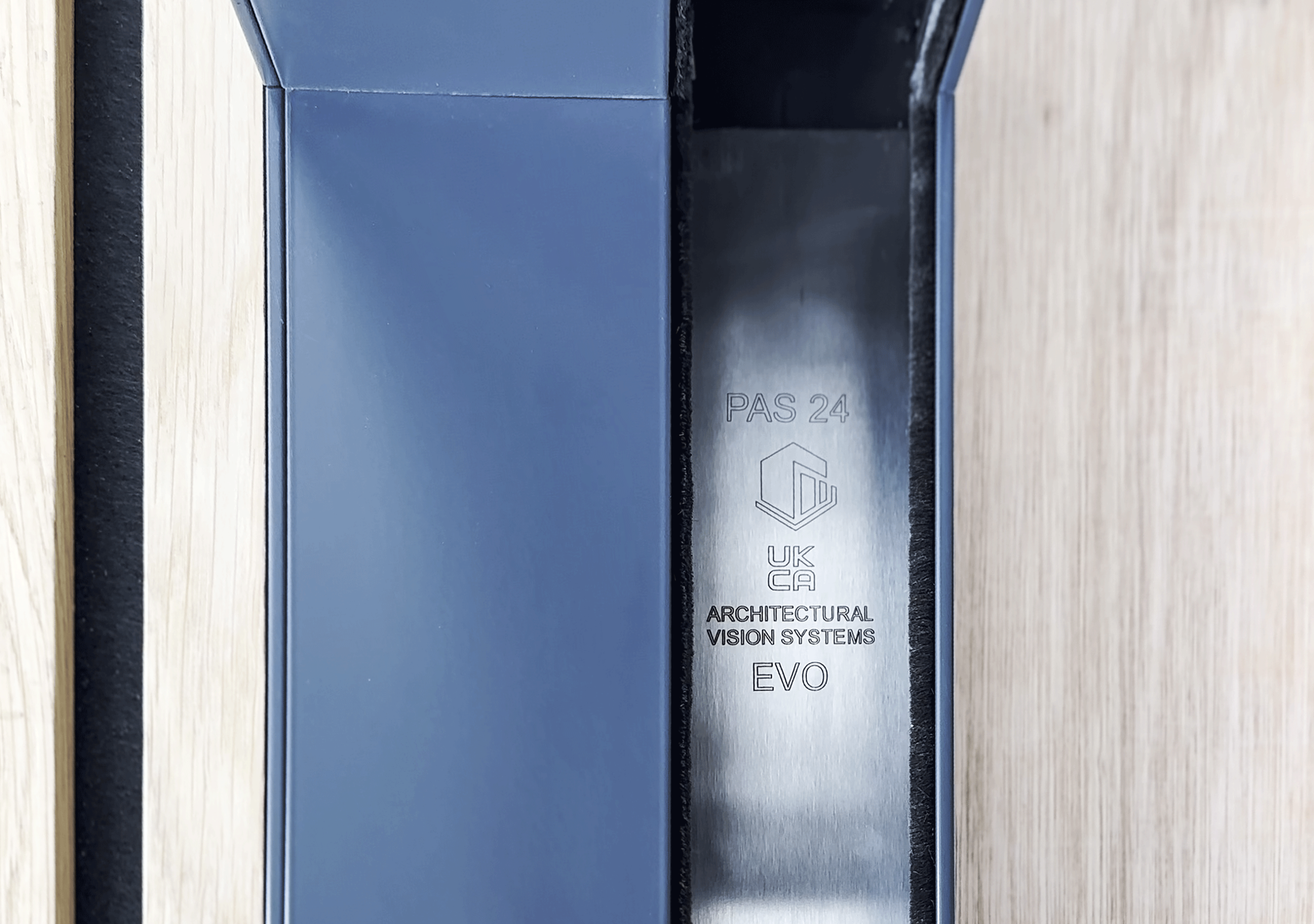

OUR VISION LINE CAN BE ENHANCED WITH A PAS 24 ACCREDITED LOCKING SYSTEM
Cor Vision Swatches

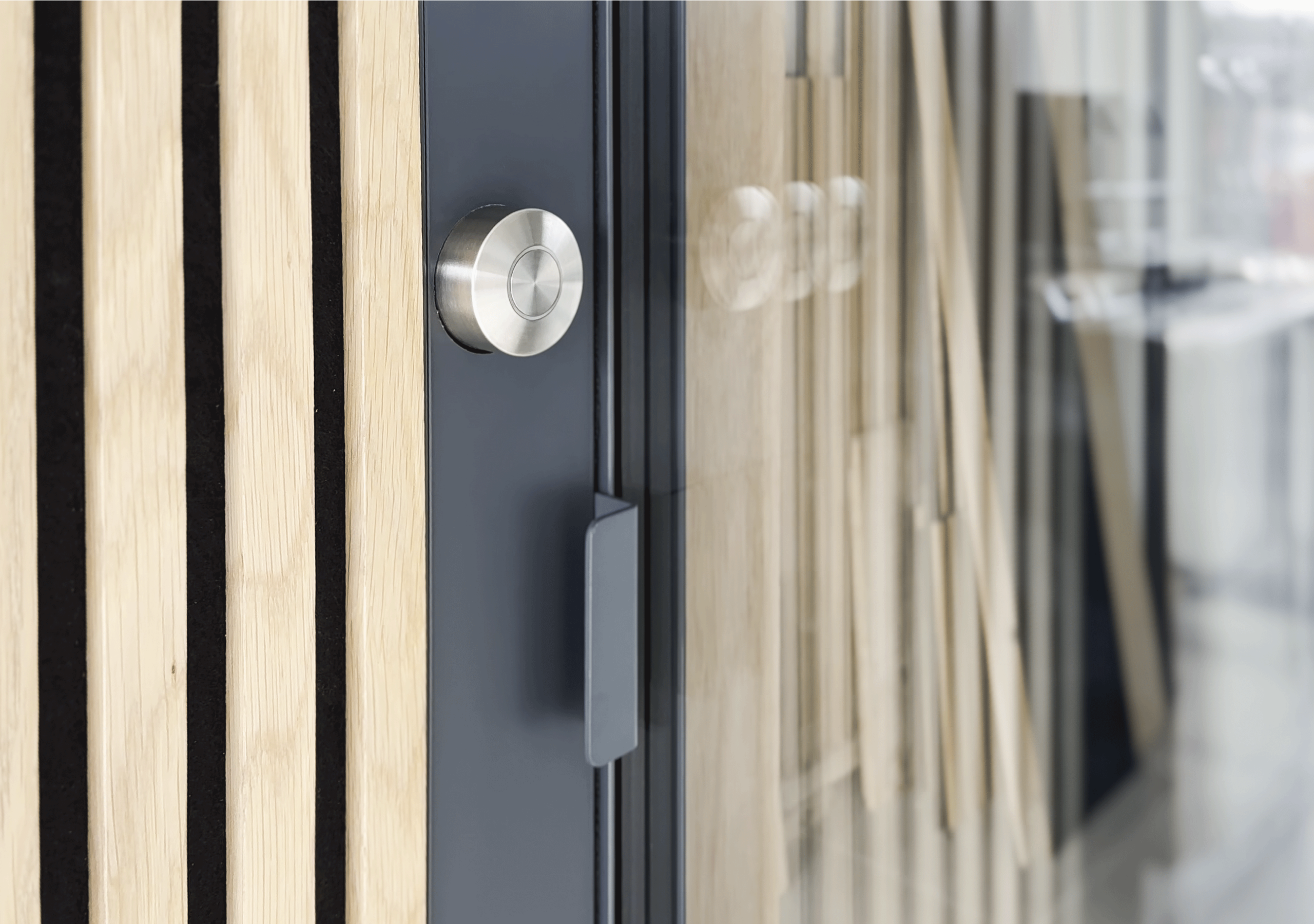

MULTI-POINT LOCKING SYSTEM FOR ENHANCED SECURITY
Cor Vision Swatches
LOW U-VALUES IMPROVE YOUR PROJECT’S ENERGY EFFICIENCY
Cor Vision Swatches

AVAILABLE IN LARGE DIMENSIONS TO SUIT ANY DESIGN CHOICE

Cor Vision Swatches
MANUFACTURED IN THE HEART OF KENT AT OUR SITES IN CANTERBURY AND RAMSGATE
Cor Vision Swatches
EXCELLENT WIND, WATER AND AIR RESISTANCE RATING
Cor Vision Swatches
CONFIGURATIONS INCLUDE 90° CORNERS, POCKET SOLUTIONS, AND SLIDING DOORS WITH UP TO 4 TRACKS.
A technical line drawing shows a cross-section of a Cortizo Cor Vision Evolution slim sliding door. The view is from the side, looking down at the door's thickness. On the left, a single, slim fixed frame is visible. To its right, three individual sliding sashes are nested closely together, each with a narrow frame profile, indicating their "slim" design. The bottom of the image details the multi-track rail system on which the sashes slide, showing the various components that make up the track and rollers. The overall impression is one of minimalist design and precise engineering, highlighting the narrow sightlines and efficient stacking of multiple door panels.



U-VALUE

0.88W/m2K

AIR PERMEABILITY

EN 12207:2000
CLASS 4

DOCUMENT Q

COMPLIANT

MAXIMUM DIMENSION

ENQUIRE FOR MAXIMUM SIZES

SIGHTLINE

25MM

APPLICATIONS

ALL GENERAL LIGHT APPLICATIONS

WIND RESISTANCE

EN 12210:2000
CLASS C5

WATER TIGHTNESS

EN 12208: Class E900

DOCUMENT L

COMPLIANT

FINISHES

TEXTURED FINISH AS STANDARD

GLAZING THICKNESS

46MM TRIPLE GLAZED

FEATURES

THE VISION EVO HAS STANDARD WHILST INCORPORATING A FRAMELESS DESIGN WITH 20MM SIGHTLINES. HAVING A 94% GLAZED SURFACE AND RECESSED TRACKS. THERMALLY BROKEN ALUMINIUM FOR LOW U VALUES.

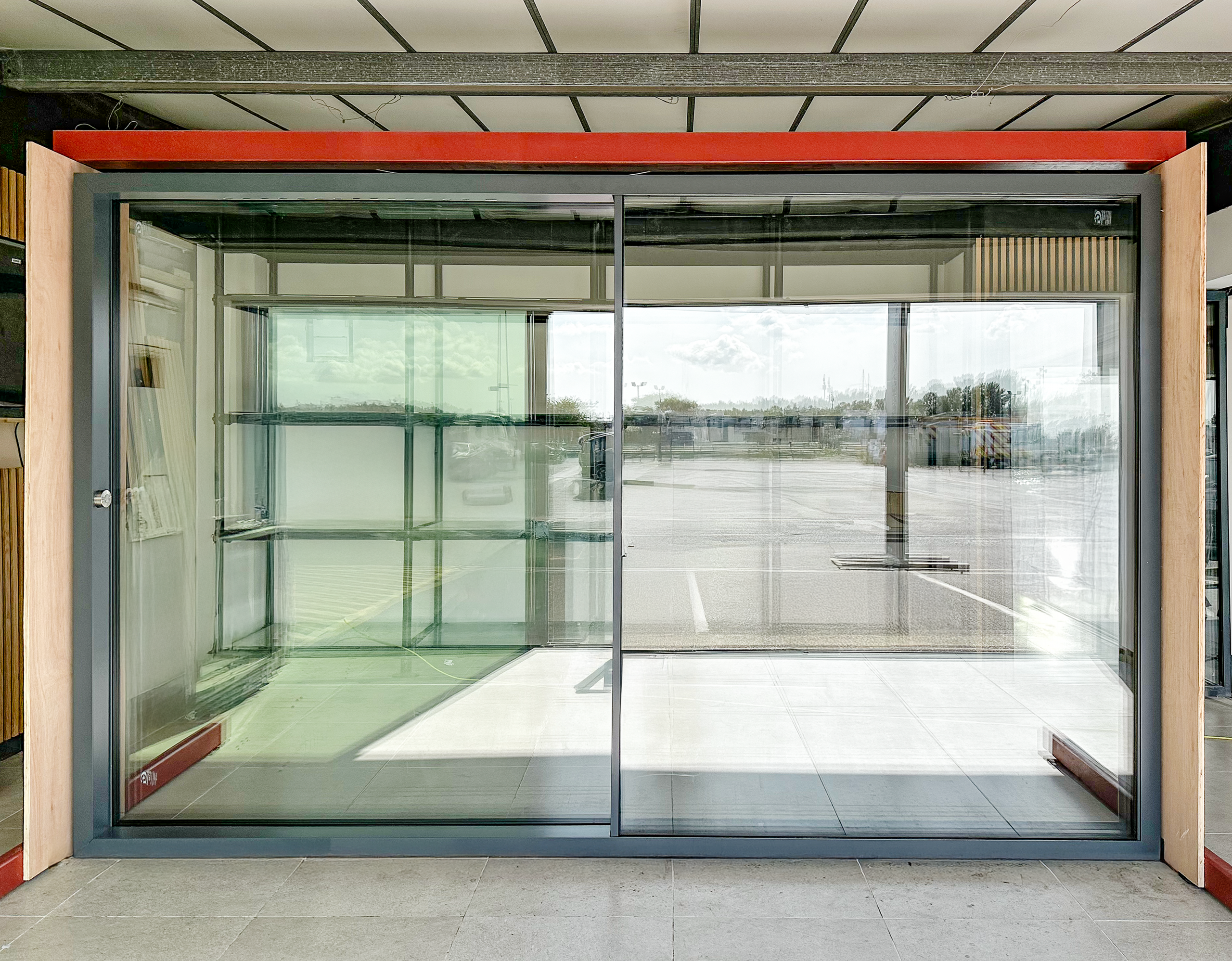

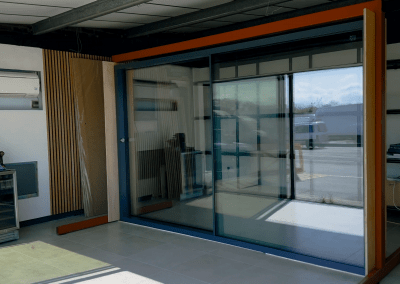

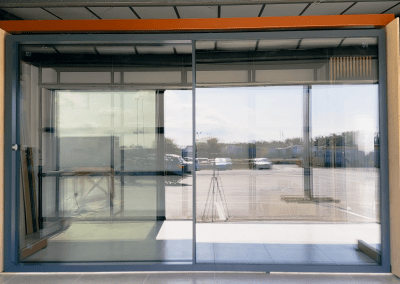

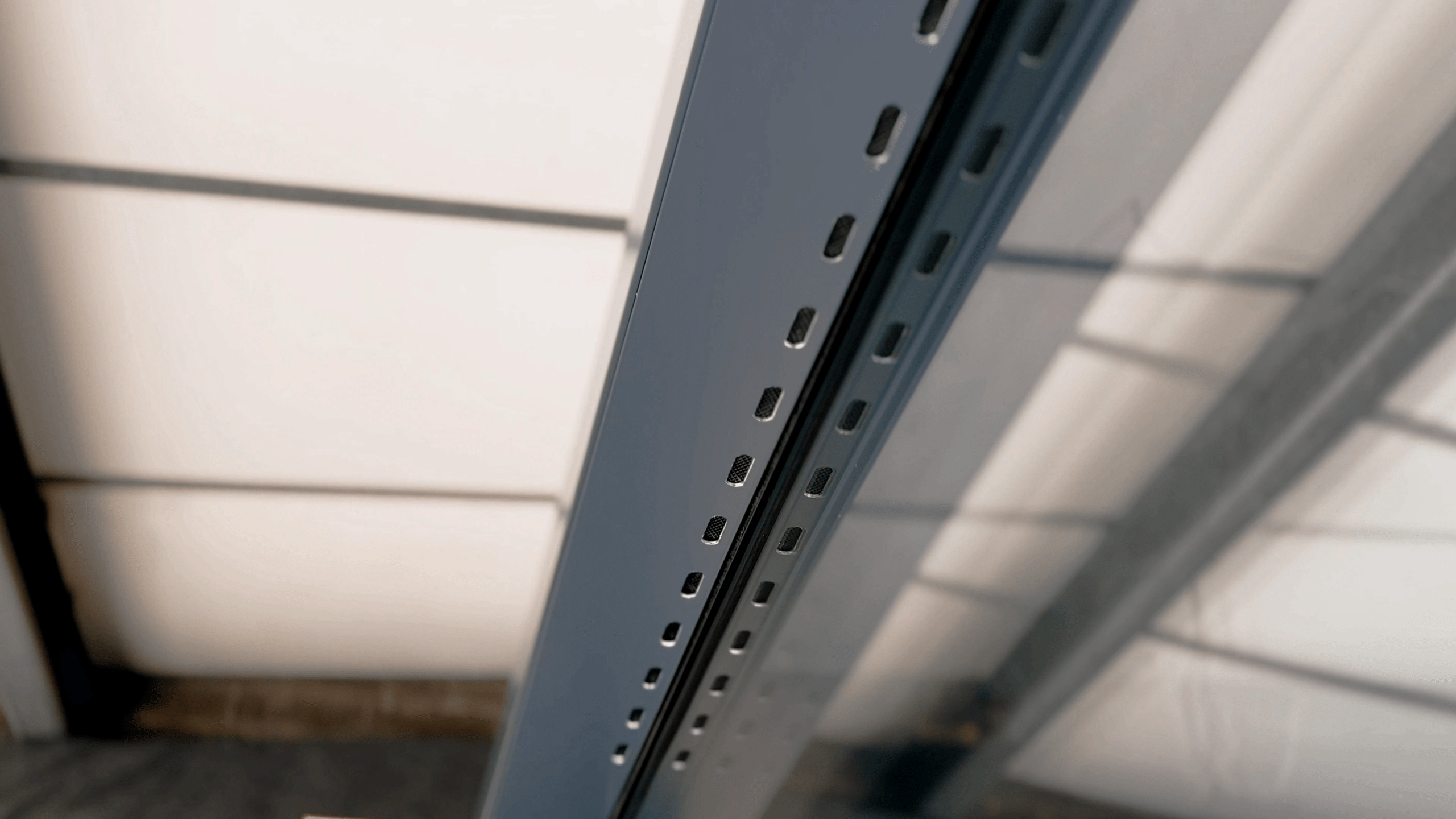

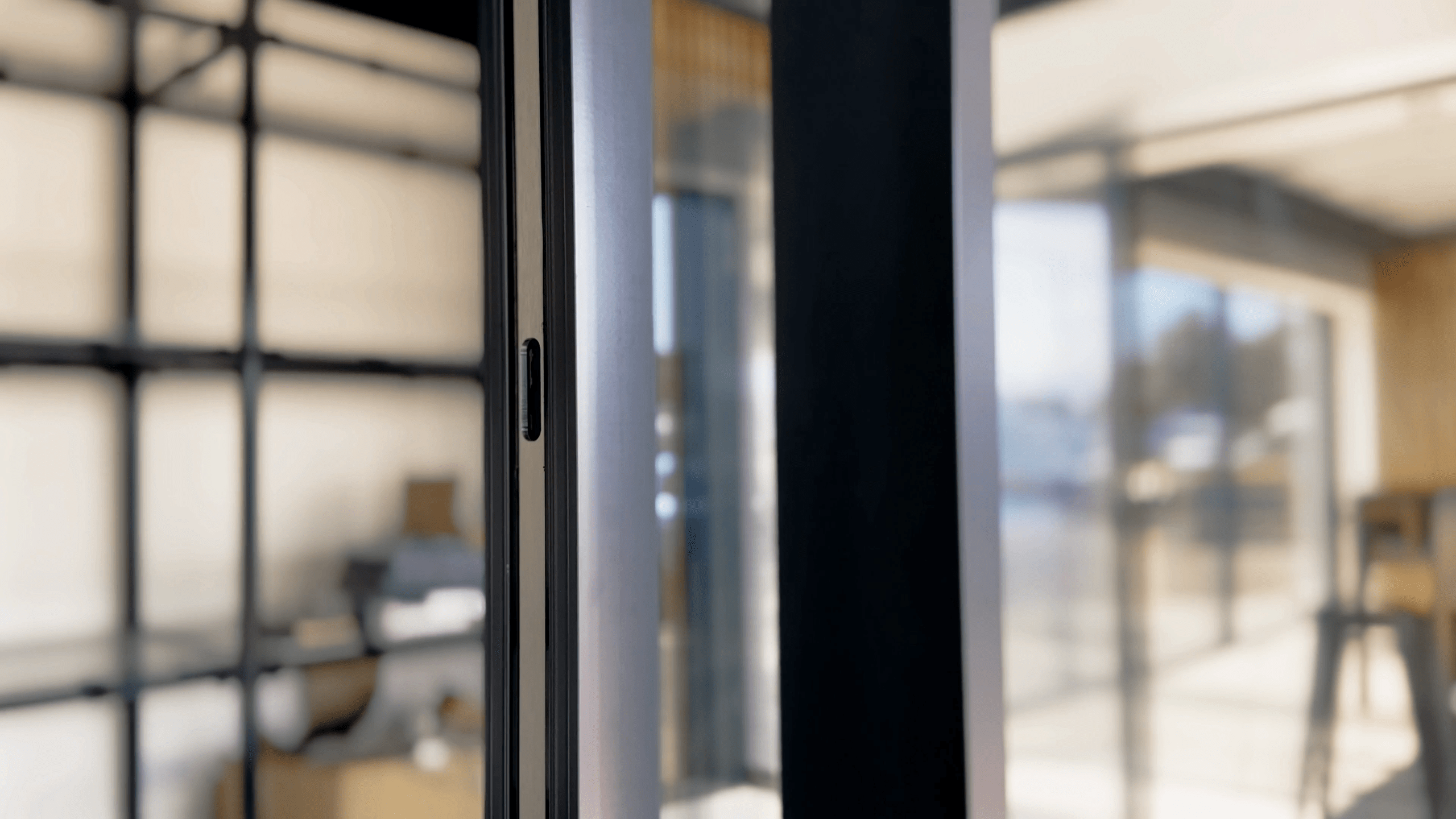

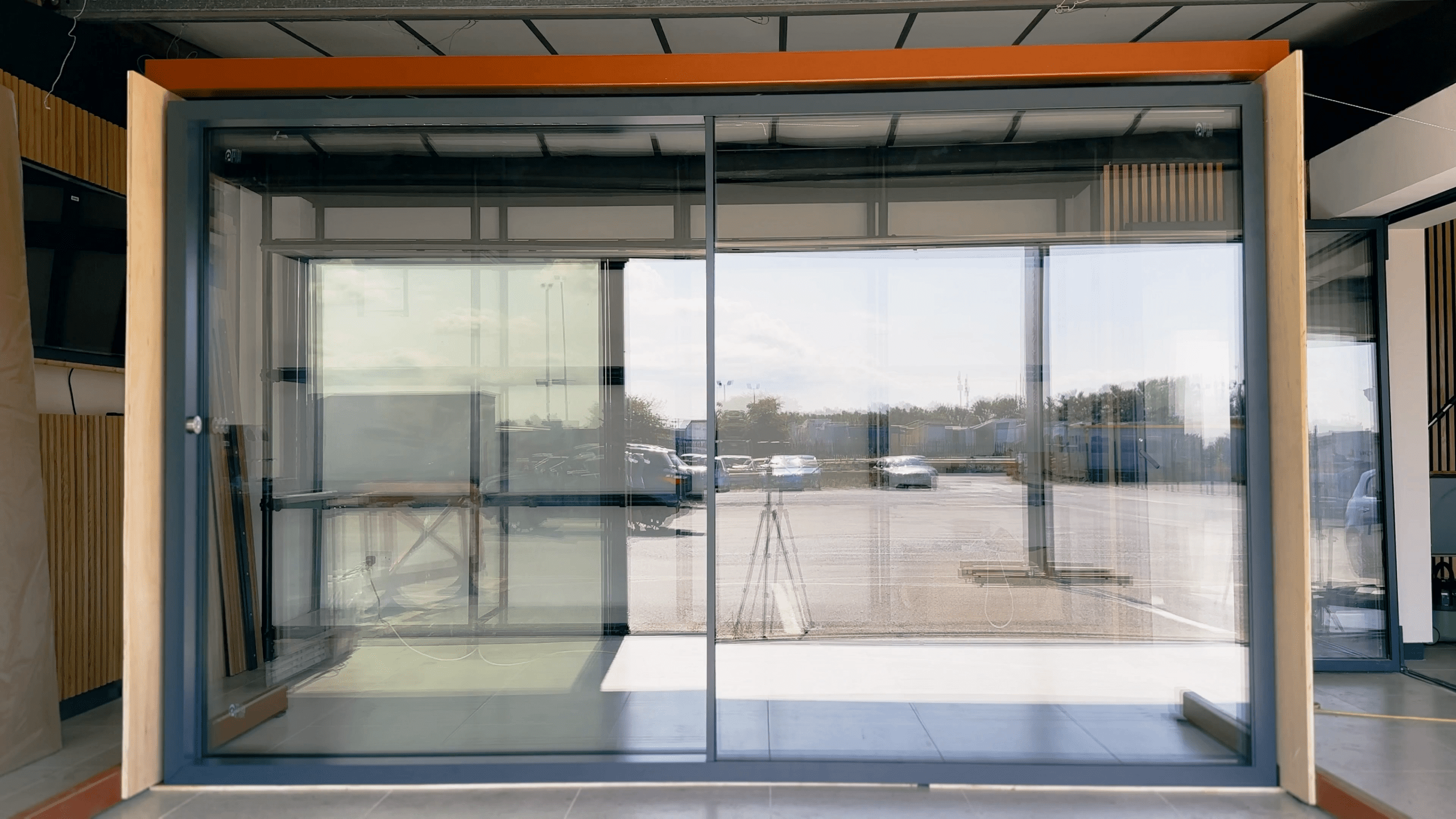

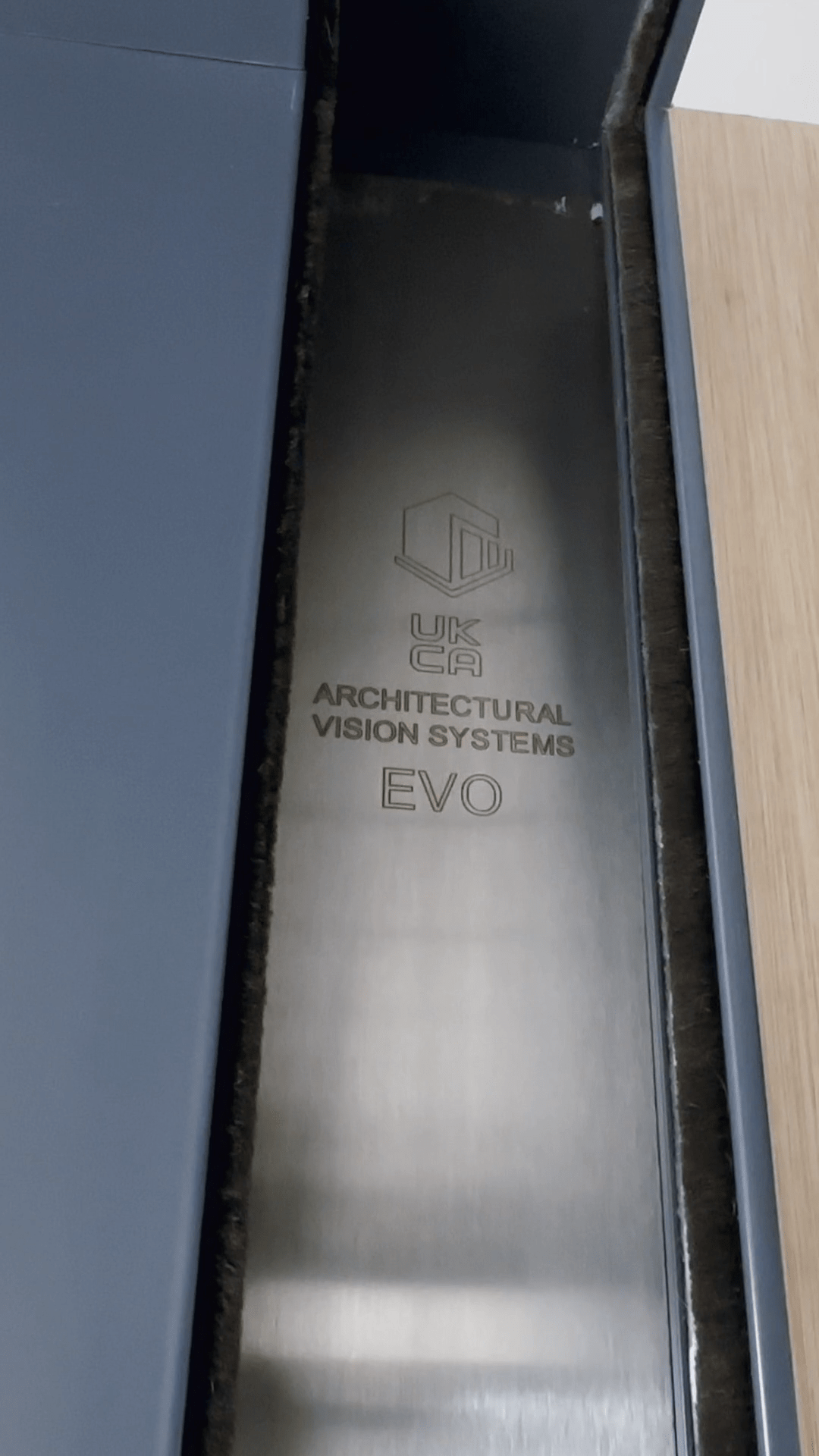

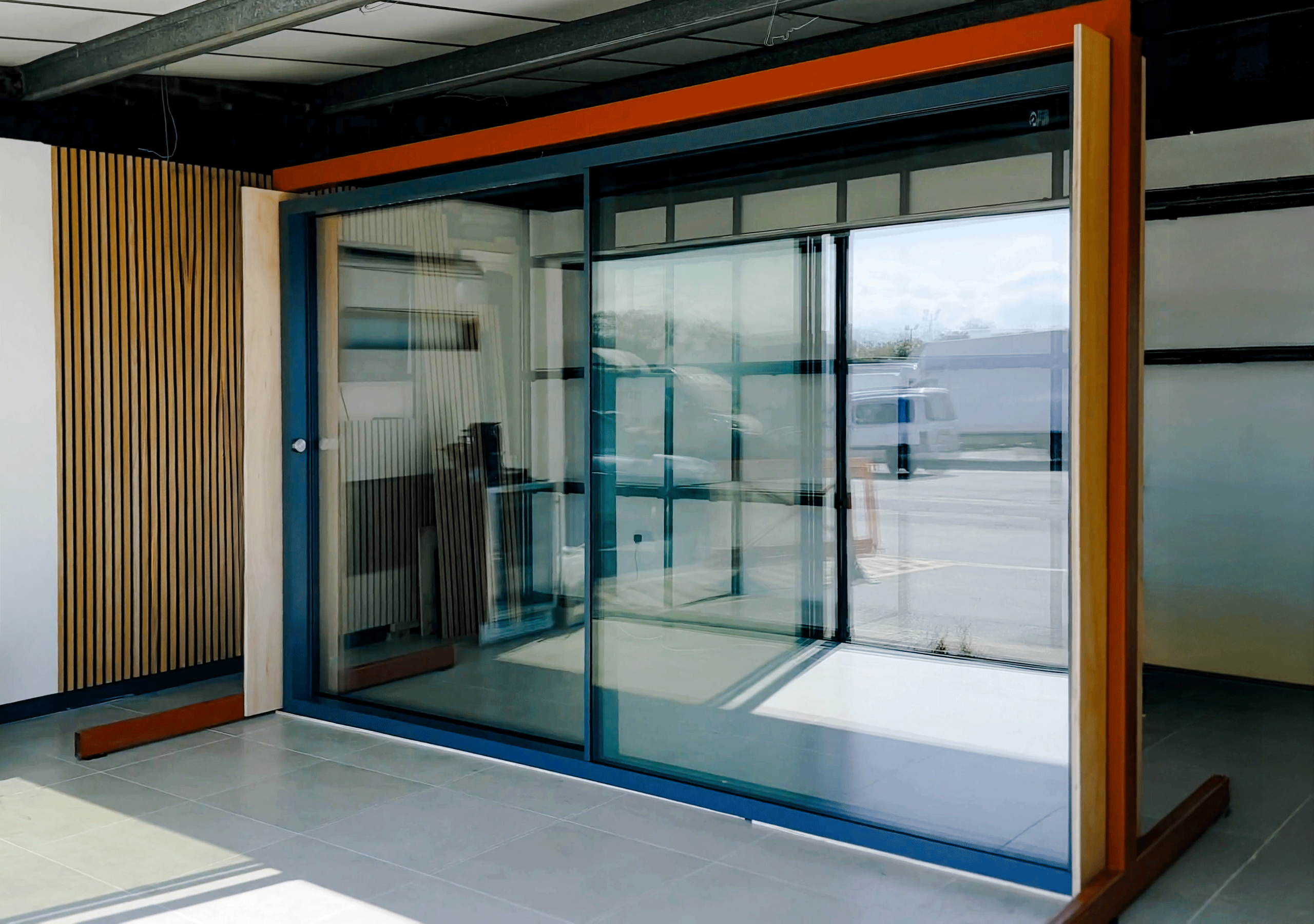

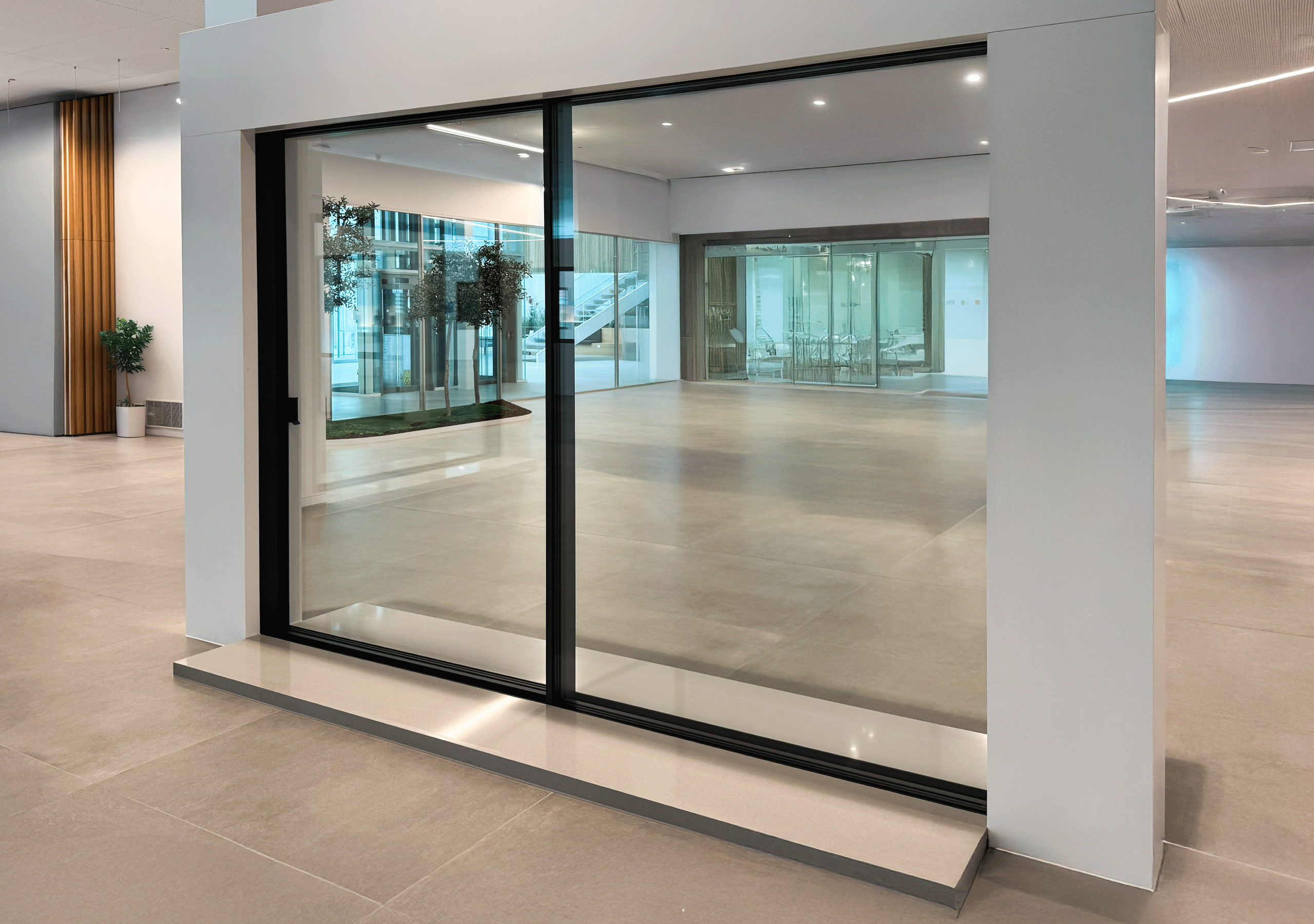

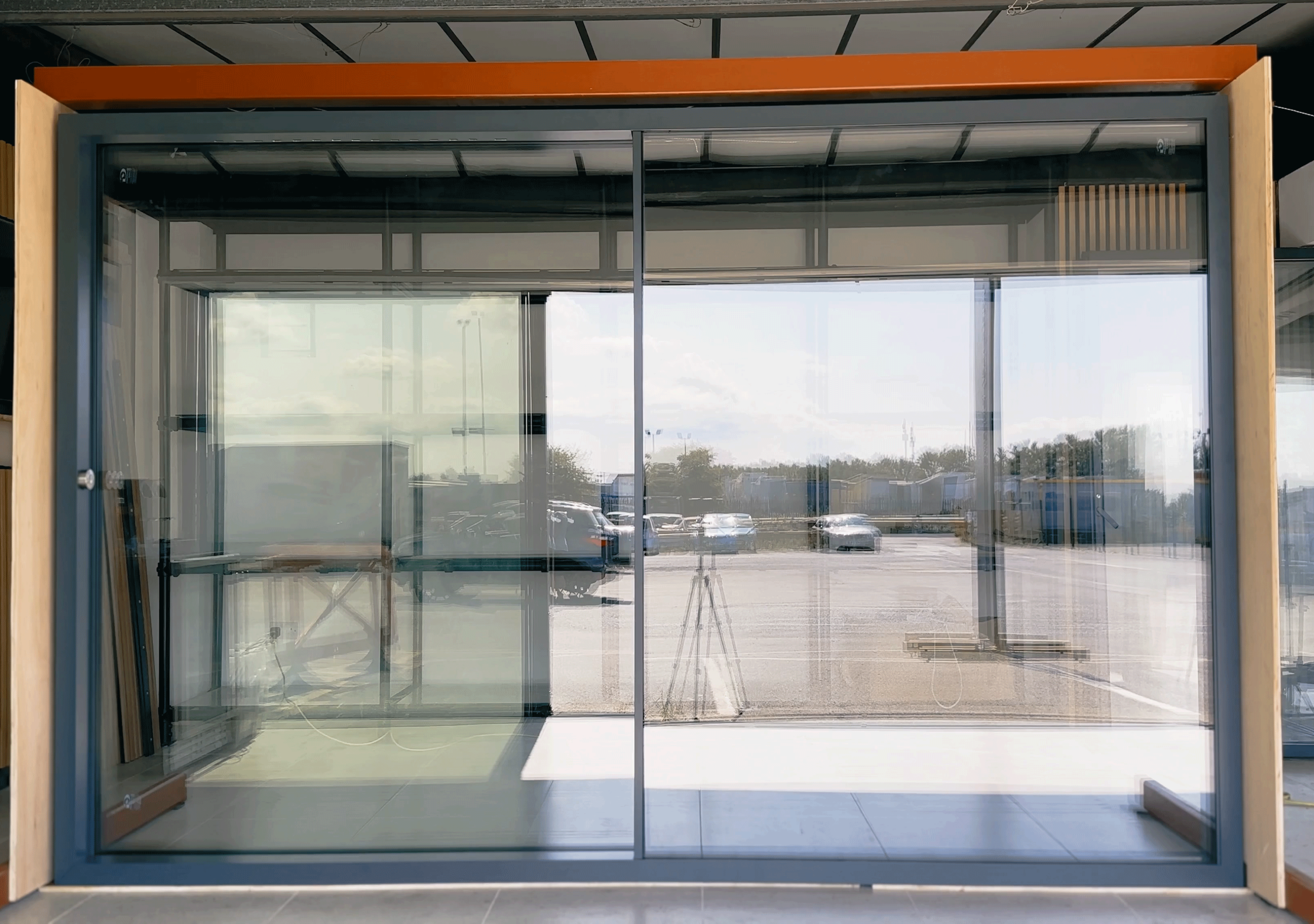

VISION EVO GALLERY

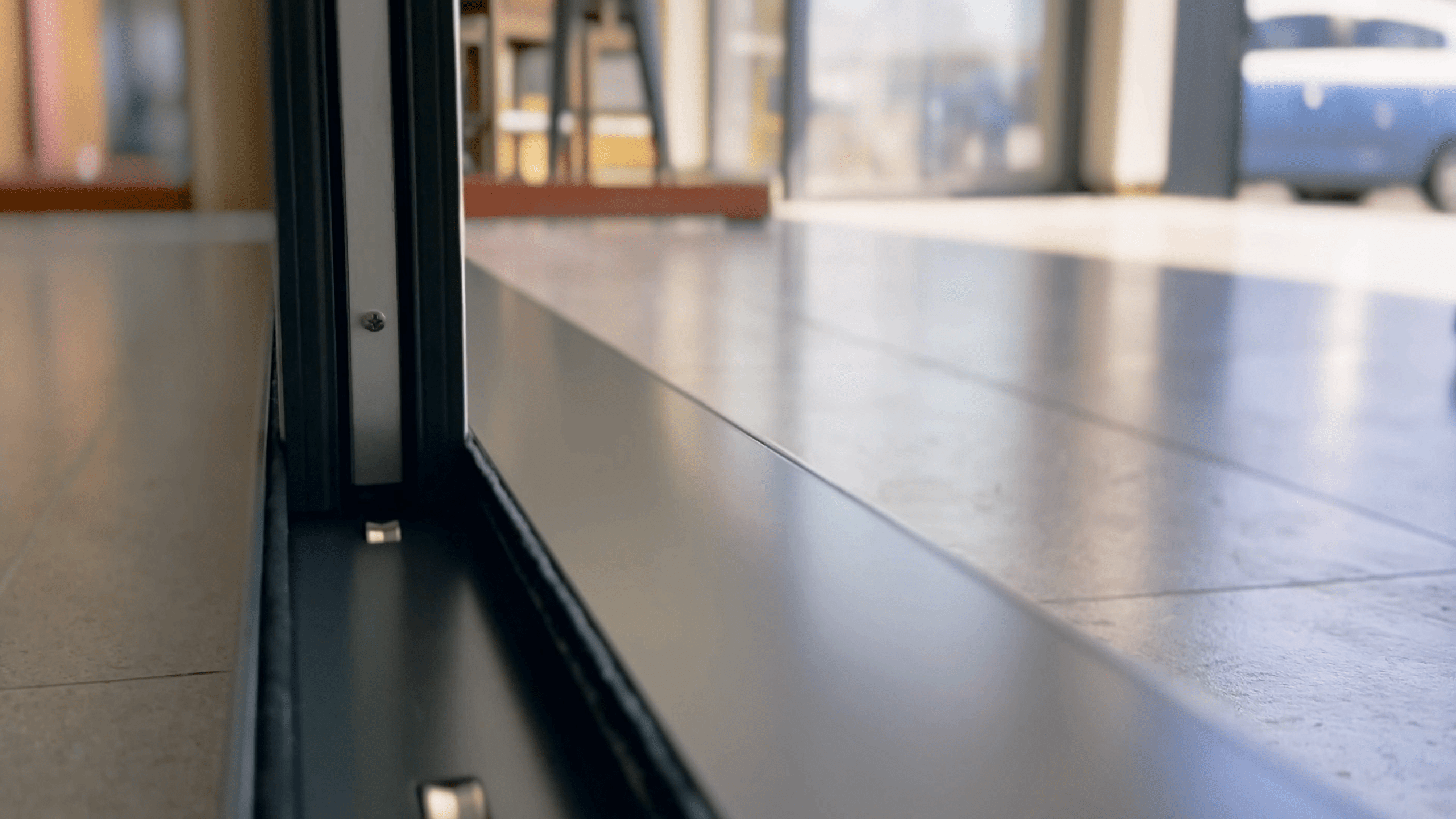

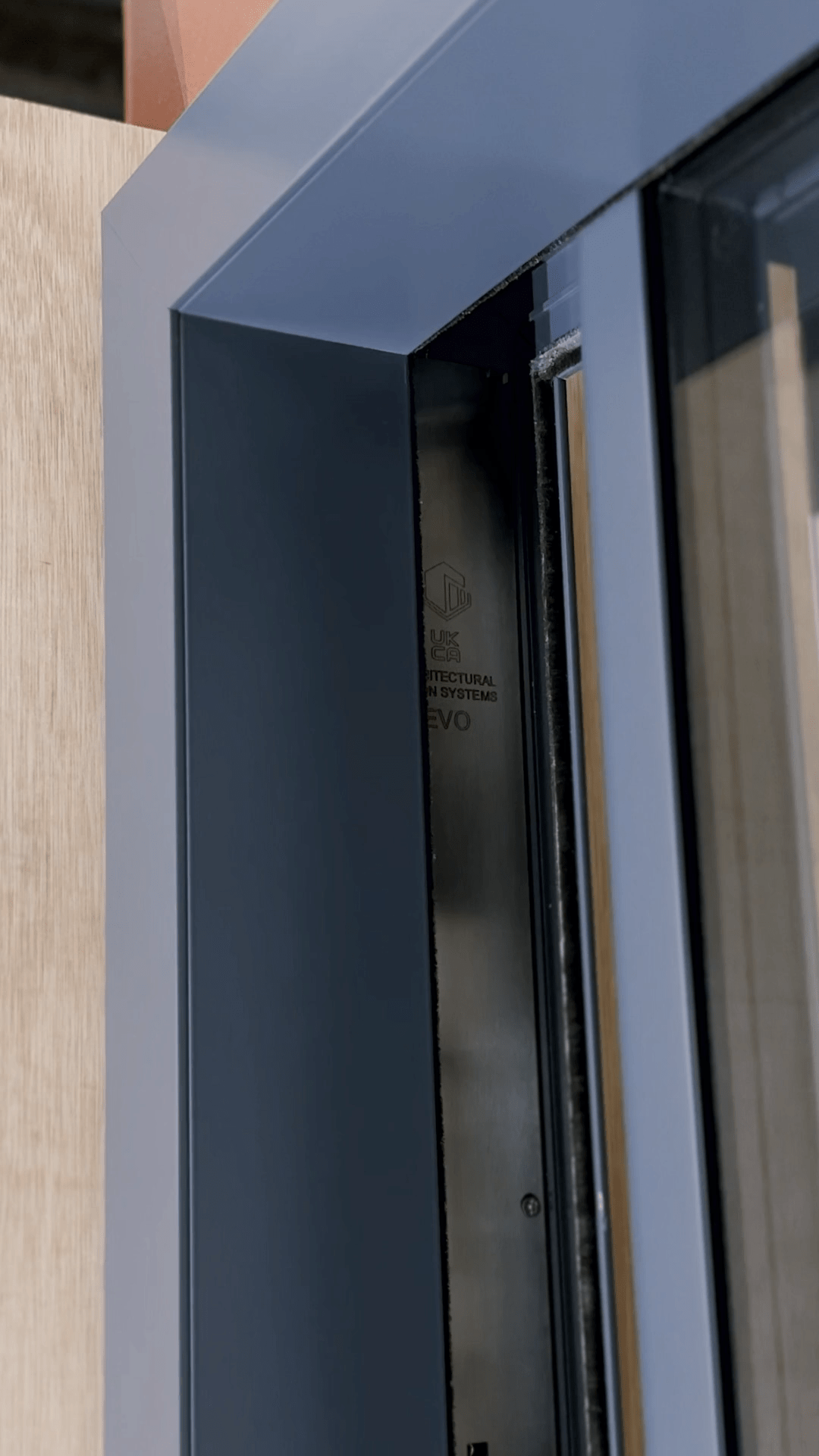

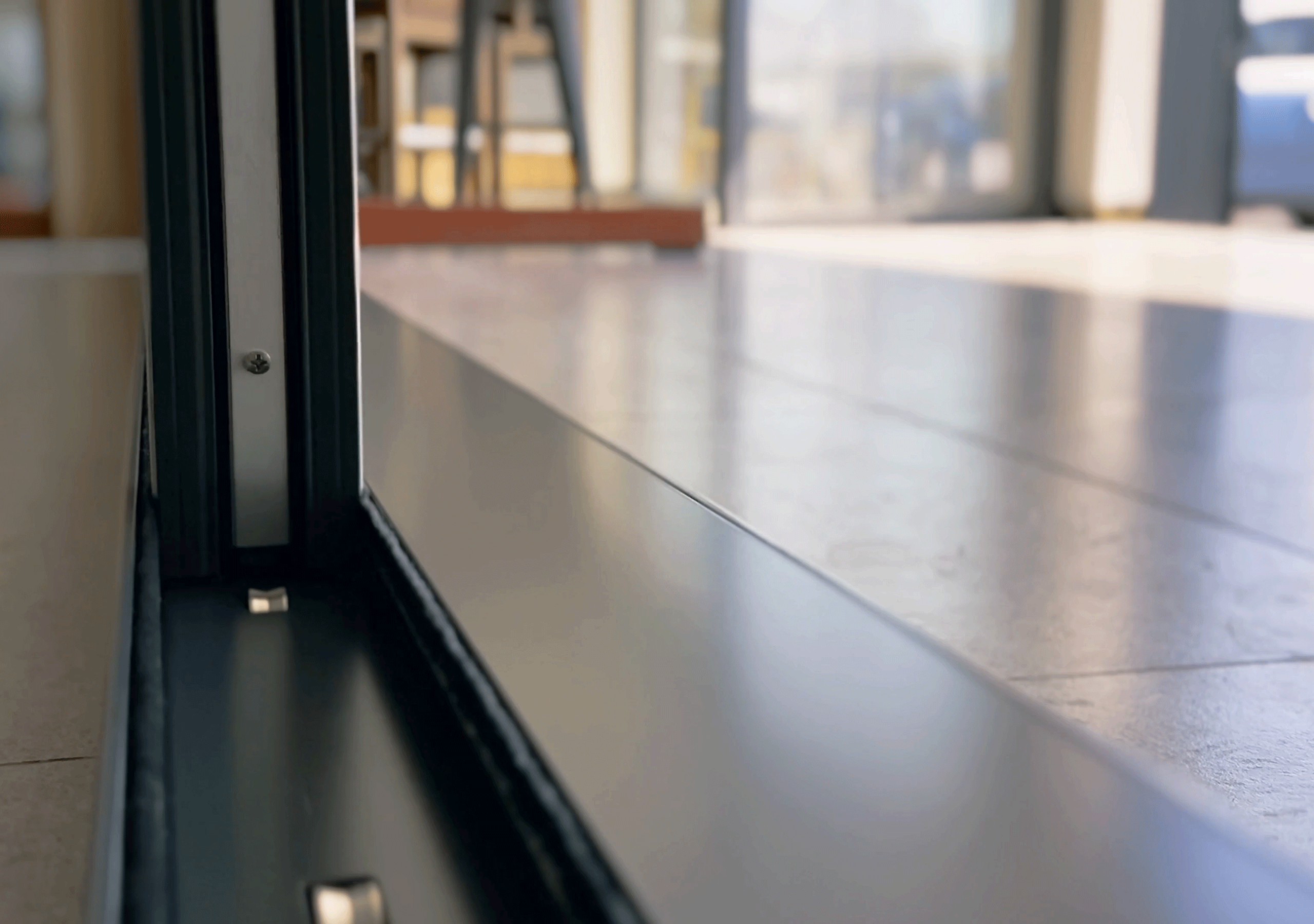

A close-up, high-angle shot focuses on the bottom track and frame of a dark grey or black sliding glass door. The detailed view shows the subtle texture and finish of the metal frame, which meets a clean, light-colored, possibly white or light grey, countertop or floor surface. The visible glass pane on the left reflects some ambient light, and the design highlights the minimal intrusion of the track into the surrounding surface.

Architectural Vision Systems

OPTIONAL FEATURES

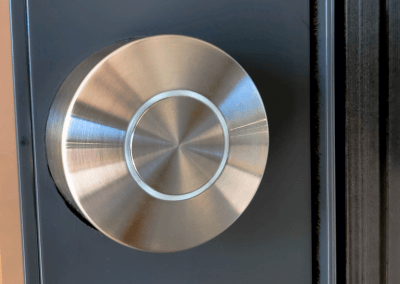

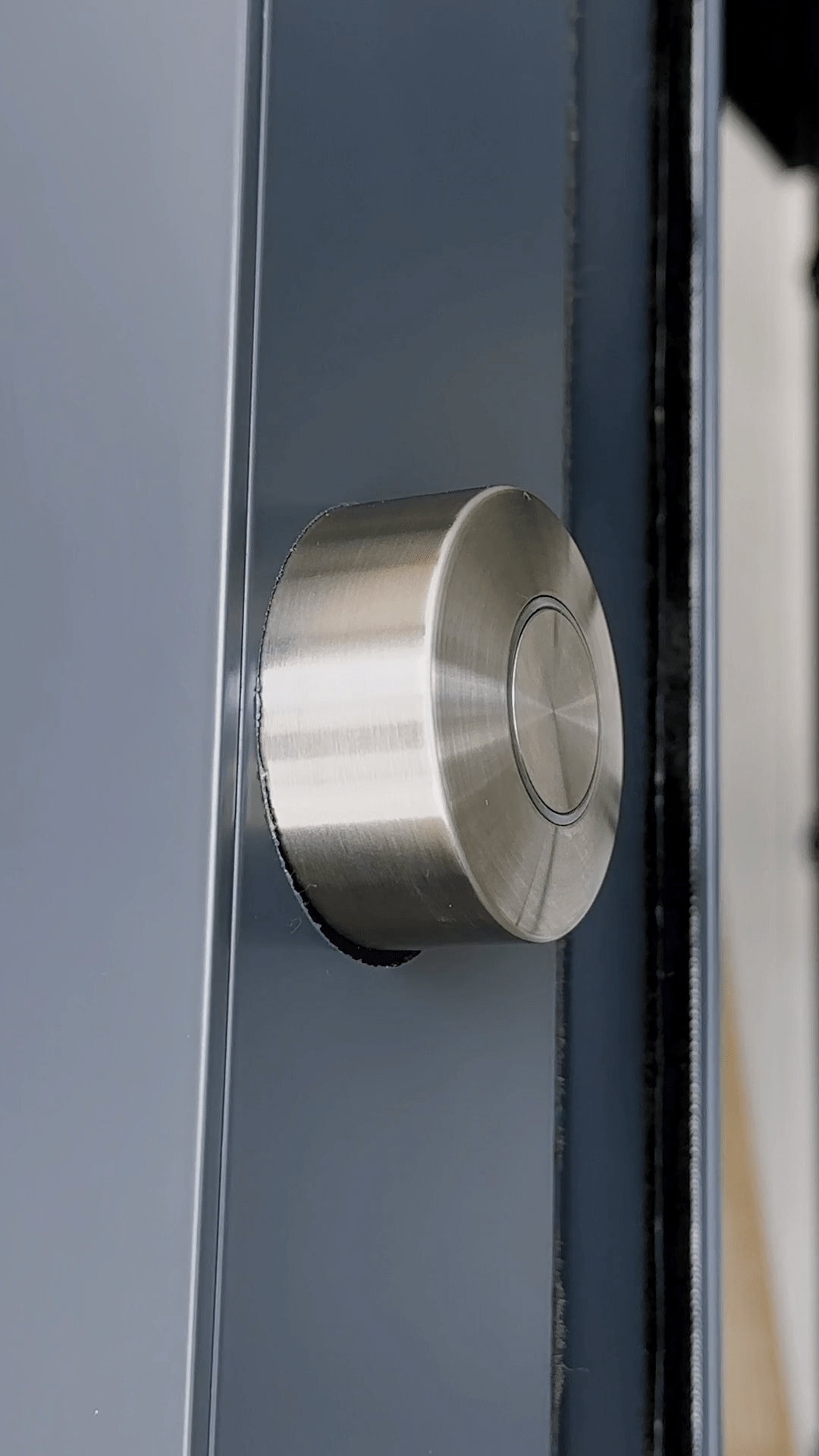

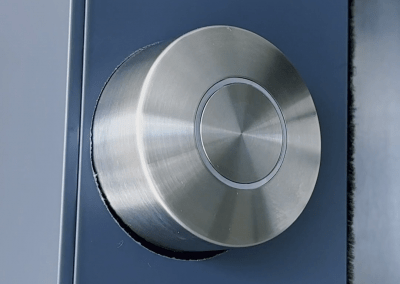

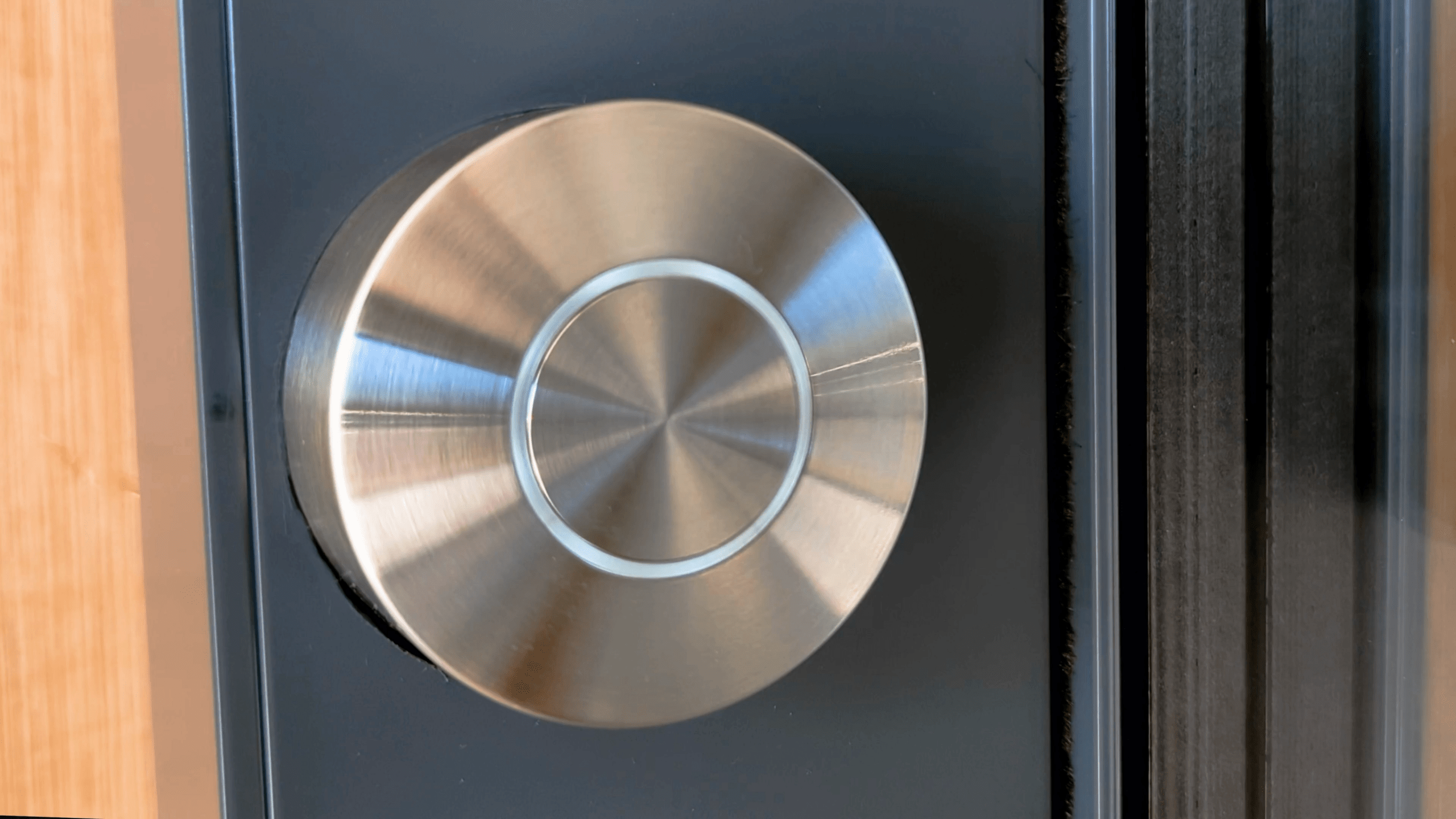

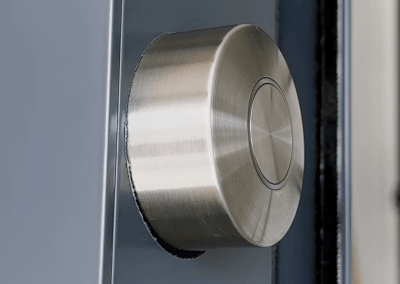

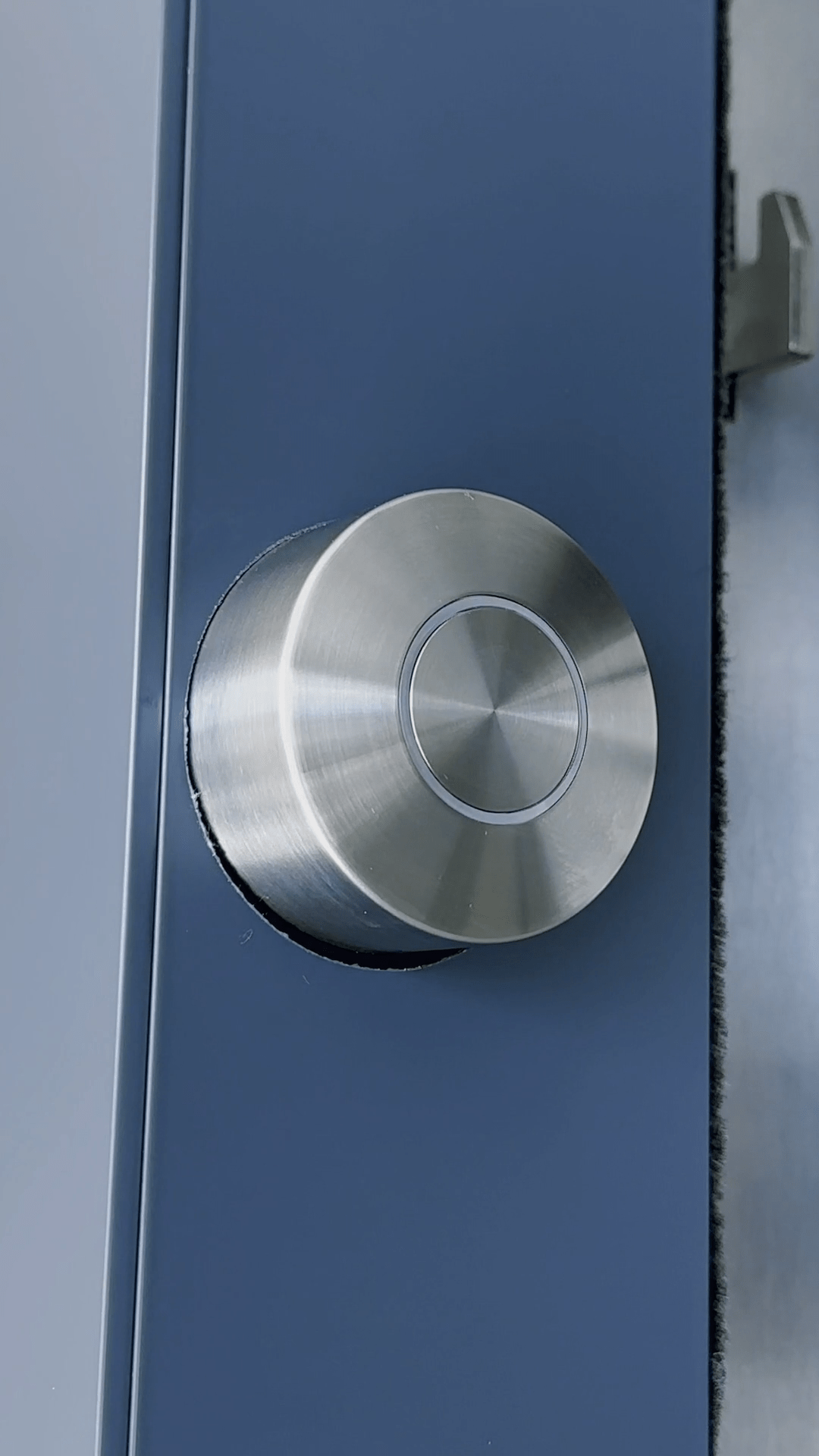

SMART SWITCH

FIND OUT MORE

NUKI SMART LOCK

FIND OUT MORE

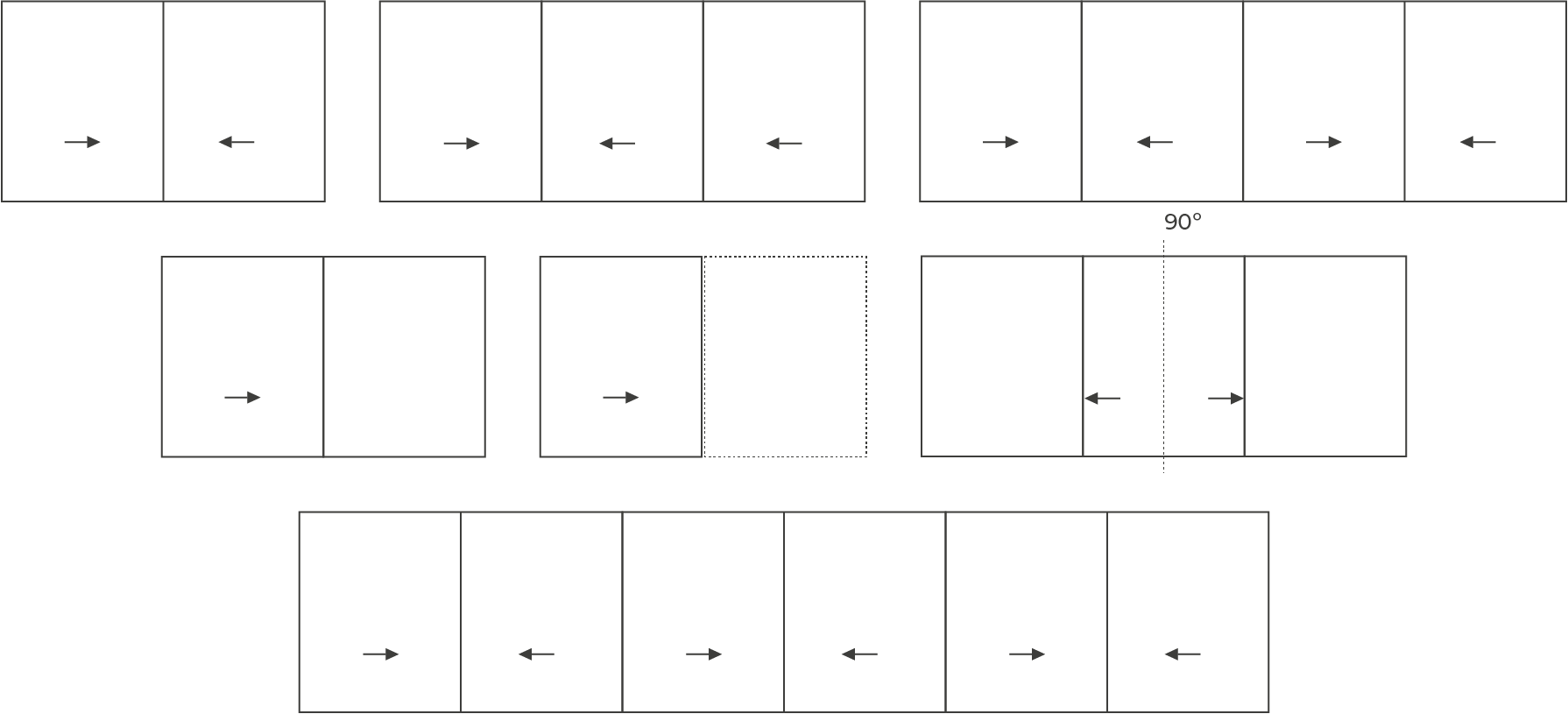

OPENING POSSIBILITIES

WHICH DOOR IS RIGHT FOR YOU?

Feature
Vision Evo NEW
AVS19 PAS 24 Cor Vision
U-Value (Thermal Performance) 0.88W/m2K 1.3W/m2K 1.3W/m2K
Glazing Standard Triple Glazed (46mm) Double Glazed Double Glazed
Weather Sealing Class 4 / E900 / C5 Class 7A / C5 Class 7A / C5
Vertical Sightline 25mm 20mm 20mm
PAS 24 Security Certified Optional Standard
Nuki Smart Lock Integration Optional
Smart Privacy Glass Ready Optional
Textured Finish Standard Standard
PART L Compliant Standard Standard Standard
PART Q Compliant Standard Standard Standard
